Handi extended scope mounting

Post by HotRodColt » Tue Dec 26, 2017 4:28 pm

I need some suggestions on getting a scope mounted further out on the barrel of my Handi. I had a Burris Compact 2-7 on it that required an extension on the hammer. The supplied extension seemed to cause several misfires. I sourced an aluminum extension off e-gunparts and it helped, but I am still having some misfires. I have a Wolff hammer spring for it, but honestly I would just prefer the scope to be mounted out further. I removed the Burris 2-7 and mounted it to a .22 I had.

The PA Prismatic with ACSS reticle is about ideal, but it looks bulky and it's not cheap. I'd be happy with a 2.5-4x fixed power scope that was fairly compact. I just want to be able to run the hammer without an extension and have a fairly low profile. I know the current rail should be bedded in with JB weld before I put anymore leverage on it.

To add, the misfires have been with Remington and UMC factory ammo, as well as some Sellier and Bellot. I have not tried Barnes ammo in it yet.

BulletFlight for Android
Aggie
Silent Operator
Posts: 74
Joined: Sun Dec 15, 2013 6:57 pm

Re: Handi extended scope mounting

Post by Aggie » Tue Dec 26, 2017 4:55 pm

Not quite the magnification you're looking for, on my Handi I use a Vortex Strike Fire that came with a screw in 2xmag and on a high cantilever mount. Looking online I guess the new strike fire 2's don't come with the screw in magnifier anymore.

You may be able to go with a red dot with a large magnifier behind it although starts getting bulkier at that point too.

I tried my PA prism on my handi rifle but I wasn't pleased with the eye relief.

User avatar
cwlongshot
Silent But Deadly
Posts: 1077
Joined: Sat Oct 18, 2014 7:53 pm
Location: Connecticut

Re: Handi extended scope mounting

Post by cwlongshot » Wed Dec 27, 2017 10:08 am

ALL handi rifles REQUIRE the addition of a wolffe extra power hammer spring.

They use crap springs... I should know I had over 30 of them at one time...

CW
RARR 300 BLK
Ares SCR 300 BLK
TROY "other" 300 BLK
DSI based build w/18” 300 BLK (Neutered fixed mag)



I PROUDLY SUPPORT LAW ENFORCEMENT & OUR TROOPS!!

User avatar
John A.
Silent But Deadly
Posts: 793
Joined: Sun Dec 09, 2007 4:55 pm

Re: Handi extended scope mounting

Post by John A. » Wed Dec 27, 2017 10:38 am

cwlongshot wrote:ALL handi rifles REQUIRE the addition of a wolffe extra power hammer spring.

They use crap springs... I should know I had over 30 of them at one time...

CW
How do you change the springs in these guns?
When those totally ignorant of firearms make laws, you end up with totally ignorant firearm laws.

User avatar
cwlongshot
Silent But Deadly
Posts: 1077
Joined: Sat Oct 18, 2014 7:53 pm
Location: Connecticut

Re: Handi extended scope mounting

Post by cwlongshot » Wed Dec 27, 2017 12:04 pm

The secrete is you need to make up a slave pin. it will hold the sear to the hammer while you instal them.

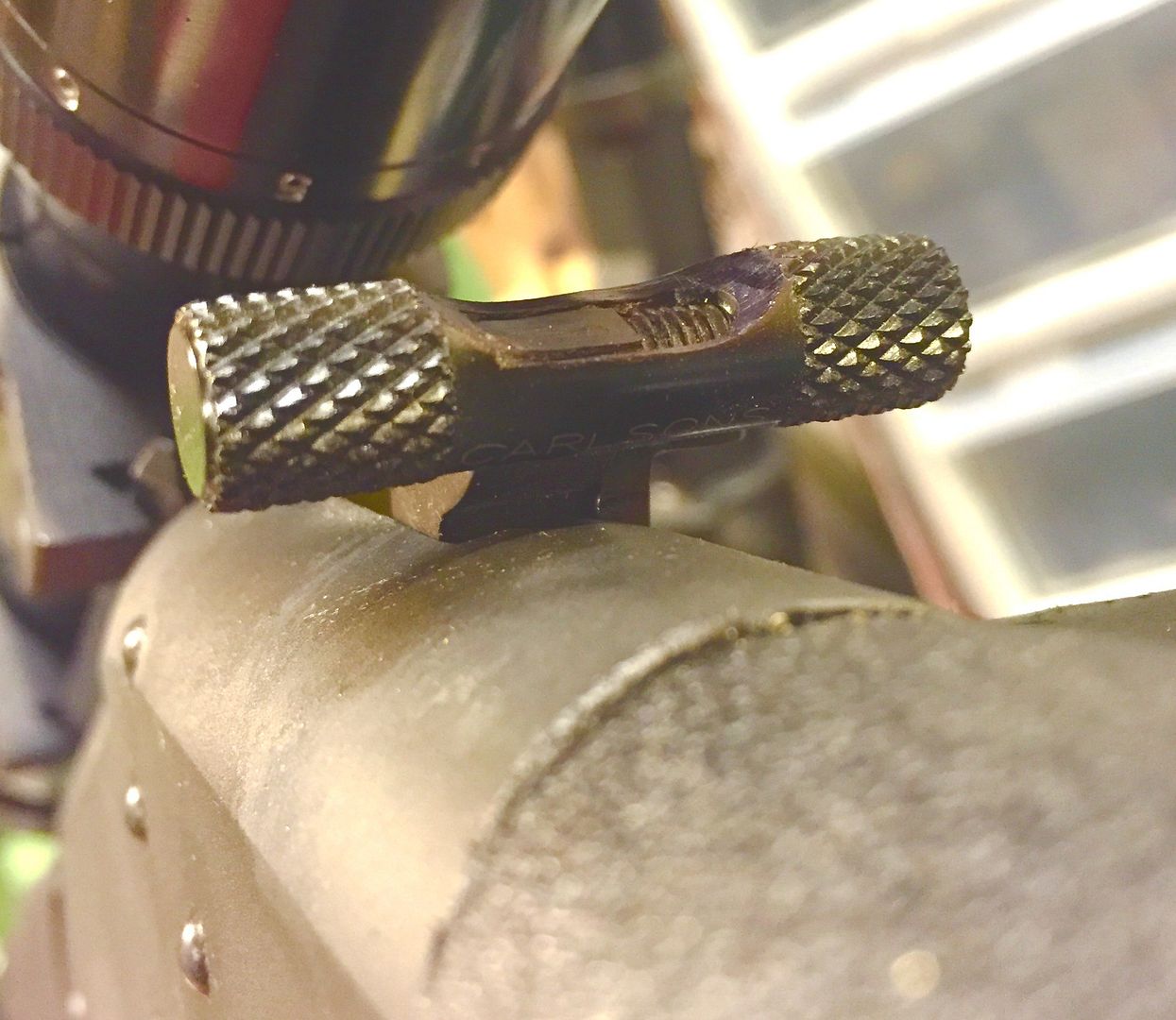

I am partial to the Carlson hammer extension. easily modified as seen.




Greybeard board has a H&R section with a pinned post with many FAQ's one is a link to a excellent thread on assembly.

http://www.go2gbo.com/forums/108-h-r-ce ... -read.html

CW
Last edited by cwlongshot on Thu Dec 28, 2017 8:24 am, edited 2 times in total.
RARR 300 BLK
Ares SCR 300 BLK
TROY "other" 300 BLK
DSI based build w/18” 300 BLK (Neutered fixed mag)



I PROUDLY SUPPORT LAW ENFORCEMENT & OUR TROOPS!!

User avatar
rebel
Silent But Deadly
Posts: 7241
Joined: Mon Apr 22, 2013 2:01 pm
Location: Moonshine Country

Re: Handi extended scope mounting

Post by rebel » Wed Dec 27, 2017 4:49 pm

HotRodColt wrote:I need some suggestions on getting a scope mounted further out on the barrel of my Handi. I had a Burris Compact 2-7 on it that required an extension on the hammer. The supplied extension seemed to cause several misfires. I sourced an aluminum extension off e-gunparts and it helped, but I am still having some misfires. I have a Wolff hammer spring for it, but honestly I would just prefer the scope to be mounted out further. I removed the Burris 2-7 and mounted it to a .22 I had.

The PA Prismatic with ACSS reticle is about ideal, but it looks bulky and it's not cheap. I'd be happy with a 2.5-4x fixed power scope that was fairly compact. I just want to be able to run the hammer without an extension and have a fairly low profile. I know the current rail should be bedded in with JB weld before I put anymore leverage on it.

To add, the misfires have been with Remington and UMC factory ammo, as well as some Sellier and Bellot. I have not tried Barnes ammo in it yet.
I'd almost bet your problem is ammunition that is to short on the head space. It's a widely reported problem with both UMC ( Barnes brass ) and the Vortex ammunition.
You can't beat the mountain, pilgrim. Mountains got its own way.

User avatar
cwlongshot
Silent But Deadly
Posts: 1077
Joined: Sat Oct 18, 2014 7:53 pm
Location: Connecticut

Re: Handi extended scope mounting

Post by cwlongshot » Thu Dec 28, 2017 8:20 am

Head space check on a SS rifle is dead easy...

Remove barrel and ejector, held vertical, drop a shell in the chamber. If properly chambered the case head, will be either dead flush to a few thousandths below flush. (Think properly seated primer)

It has happened, but Firing pin protrusion, weak hammer springs and hammer dis-connector problems are far ans away more common cause of miss fires in handi rifles.

CW
RARR 300 BLK
Ares SCR 300 BLK
TROY "other" 300 BLK
DSI based build w/18” 300 BLK (Neutered fixed mag)



I PROUDLY SUPPORT LAW ENFORCEMENT & OUR TROOPS!!

User avatar
rebel
Silent But Deadly
Posts: 7241
Joined: Mon Apr 22, 2013 2:01 pm
Location: Moonshine Country

Re: Handi extended scope mounting

Post by rebel » Thu Dec 28, 2017 10:02 pm

Hmmm....I suppose that is quite possible. I own 3, several friends own them. The only one I ever had trouble with was in 300 BLK. Even a fireformed measured round will have trouble with a CCI 450 with a factory spring and steel hammer spur. But we are talking factory ammo that has had known problems in several different kinds of rifles. You will never know until you measure base to datum on a box of unchambered ammo. I measured some stuff that wouldn't fire in an AR it was so short. Unless you have a firing pin stretcher, it ain't shooting. Just ruling out possibilities before you start tearing your rifle apart.
You can't beat the mountain, pilgrim. Mountains got its own way.

User avatar
cwlongshot
Silent But Deadly
Posts: 1077
Joined: Sat Oct 18, 2014 7:53 pm
Location: Connecticut

Re: Handi extended scope mounting

Post by cwlongshot » Fri Dec 29, 2017 9:31 am

Pin protrusion fix is dead easy too, As long as its a transfer bar gun, just grind the face of the hammer.

The hammer hits the T-Bar to fire...but the top of the hammer covers the T-Bar and sometimes hits the frame BEFORE the T-Bar bottoms,making for a short FP Protrusion.

You can see how/what you have if you remove the barrel, dry fire but hold trigger and see how far the pin protrudes. Should be at least .050 but .065 isnt crazy long. Under .040 could be a problem.

CW
RARR 300 BLK
Ares SCR 300 BLK
TROY "other" 300 BLK
DSI based build w/18” 300 BLK (Neutered fixed mag)



I PROUDLY SUPPORT LAW ENFORCEMENT & OUR TROOPS!!

HotRodColt
Member
Posts: 23
Joined: Tue Aug 20, 2013 12:51 am

Re: Handi extended scope mounting

Post by HotRodColt » Sat Dec 30, 2017 2:09 am

Been sick in bed, thanks for the pointers. Hopefully tomorrow I can do some diagnosing
